SUITEPAD
EU Registered Design

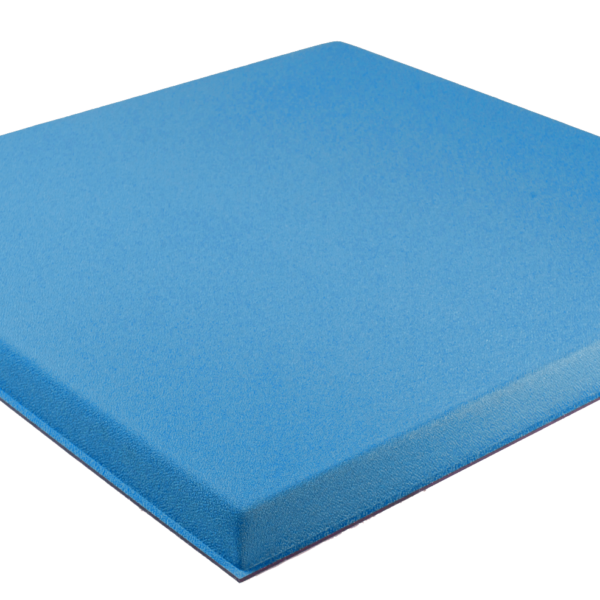

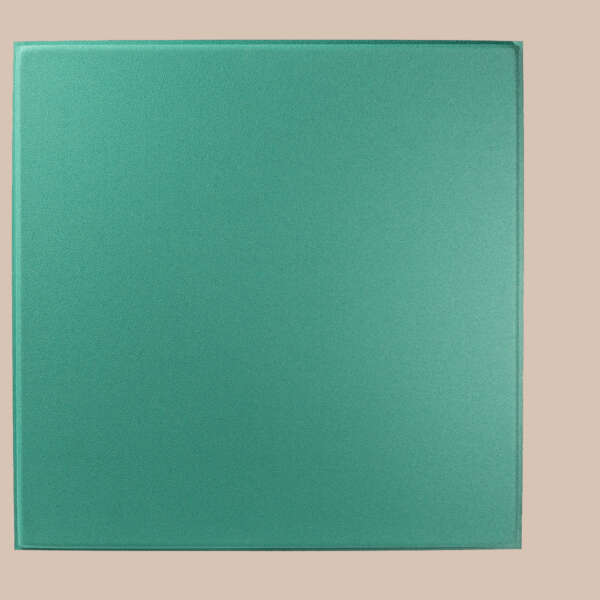

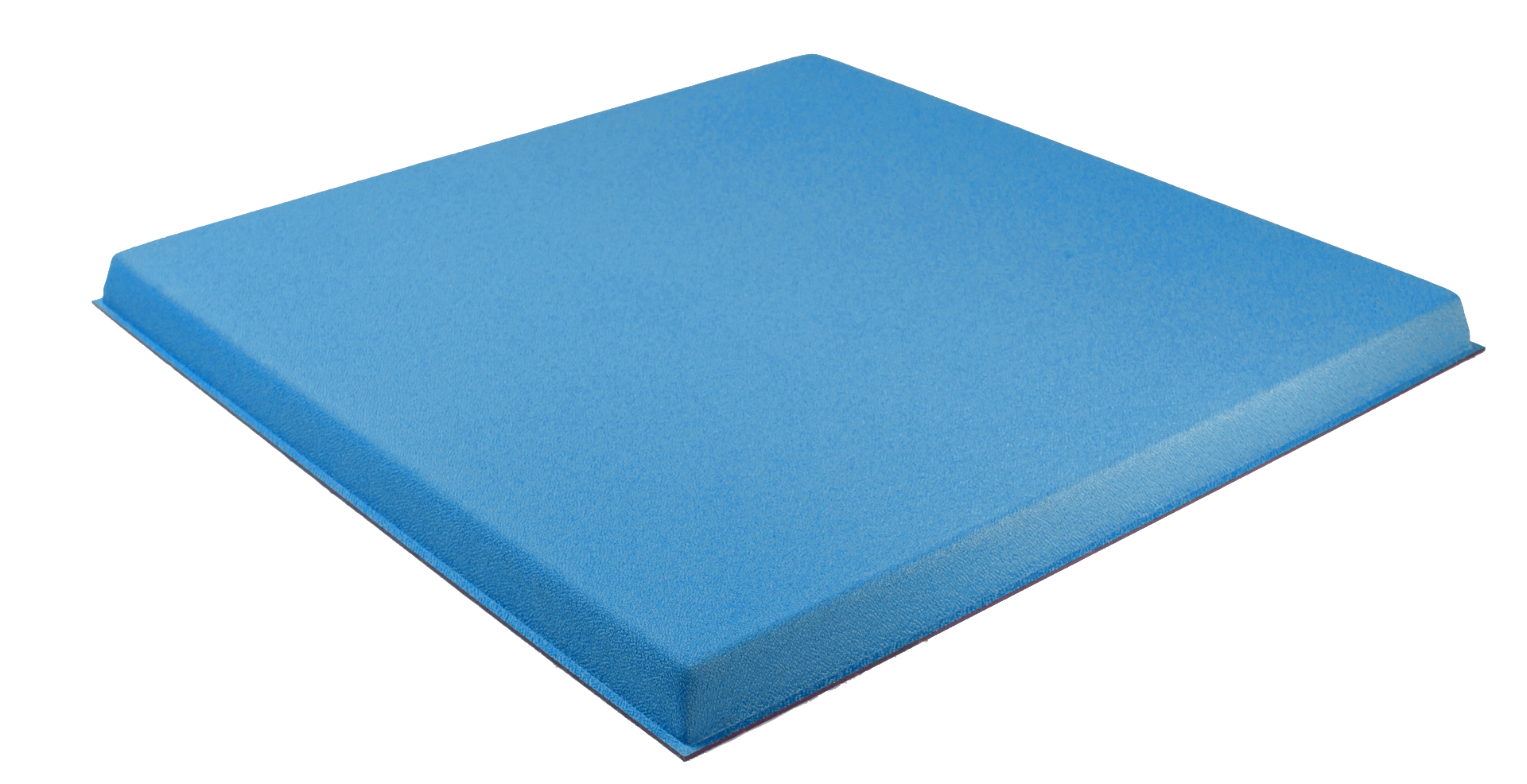

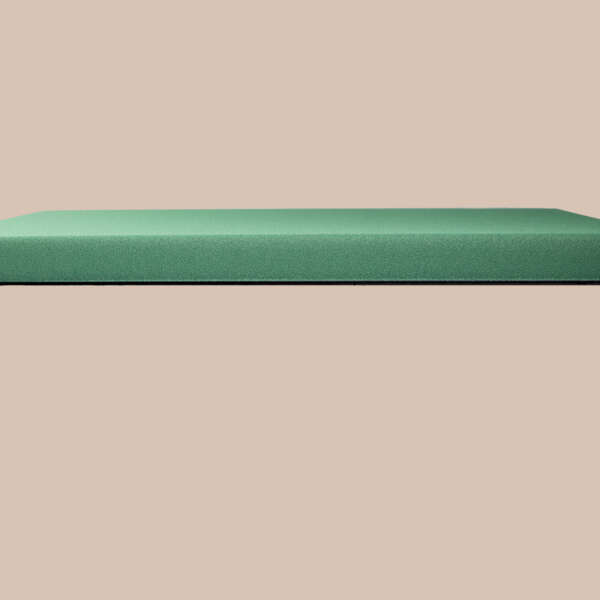

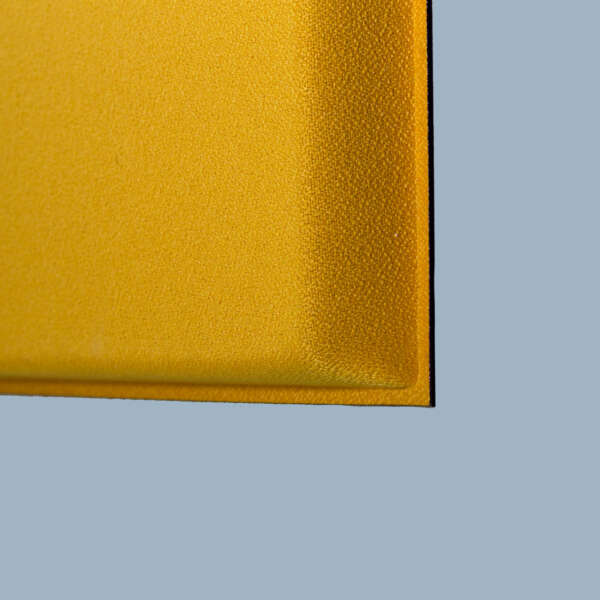

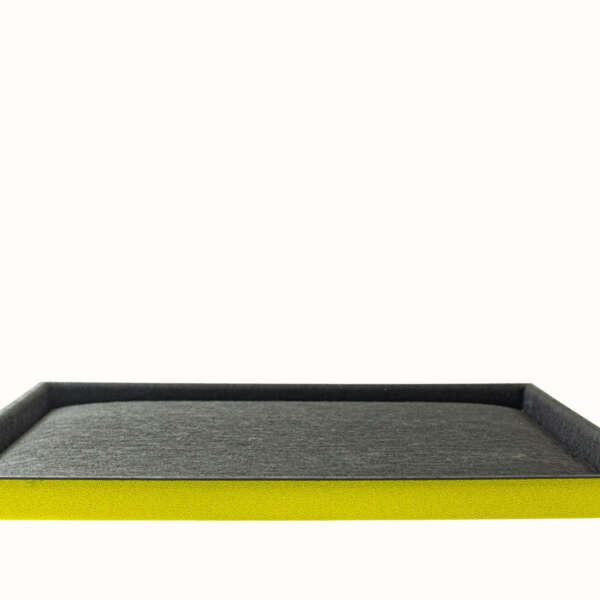

Mono-material sound absorbing panel 40 mm thick with variable density, composed of a recycled polyester fiber core and a coloured fabric covering on the flat side. The rear side of the panel is distinguished by its special shell shape, whose maximum thickness point coincides with the centre of gravity of the panel. The perimeter is fitted with a rigid edge with support function for applications inside metal suspended ceilings.
Advantages
- Registered model*
- Dual sound absorption function
- Three-dimensionality
- Versatility of use
- Light weight
* Registration No. 008267579 of 12.11.2020 at
EUIPO – EUROPEAN UNION INTELLECTUAL PROPERTY OFFICE
|
Density |
Kg/m³ |
VARIABLE |
|
Thickness |
mm |
40 mm |
|
Format |
cm |
59,5 x 59,5 cm 59,5 x 119,5 cm |
|
Reaction to Fire |
|
Bs2-d0 |
|
VOC |
|
CLASSE A + |
|
Acoustic absorption in adherence |
αw |
0,65 ** |
|
Confined spaced sound absorption |
αw | 0,85 ** |
** Value certified in the reverberant chamber and obtained by the sum of the absorption contributions of the various parts of which it is composed, taking into account that the thickness of the central sound absorbing body is prevalent and varies from 5 to 28 mm.
Certifications
