GREENPLATT
SPECIFIC FOR INSULATION OF EXISTING FLOORS

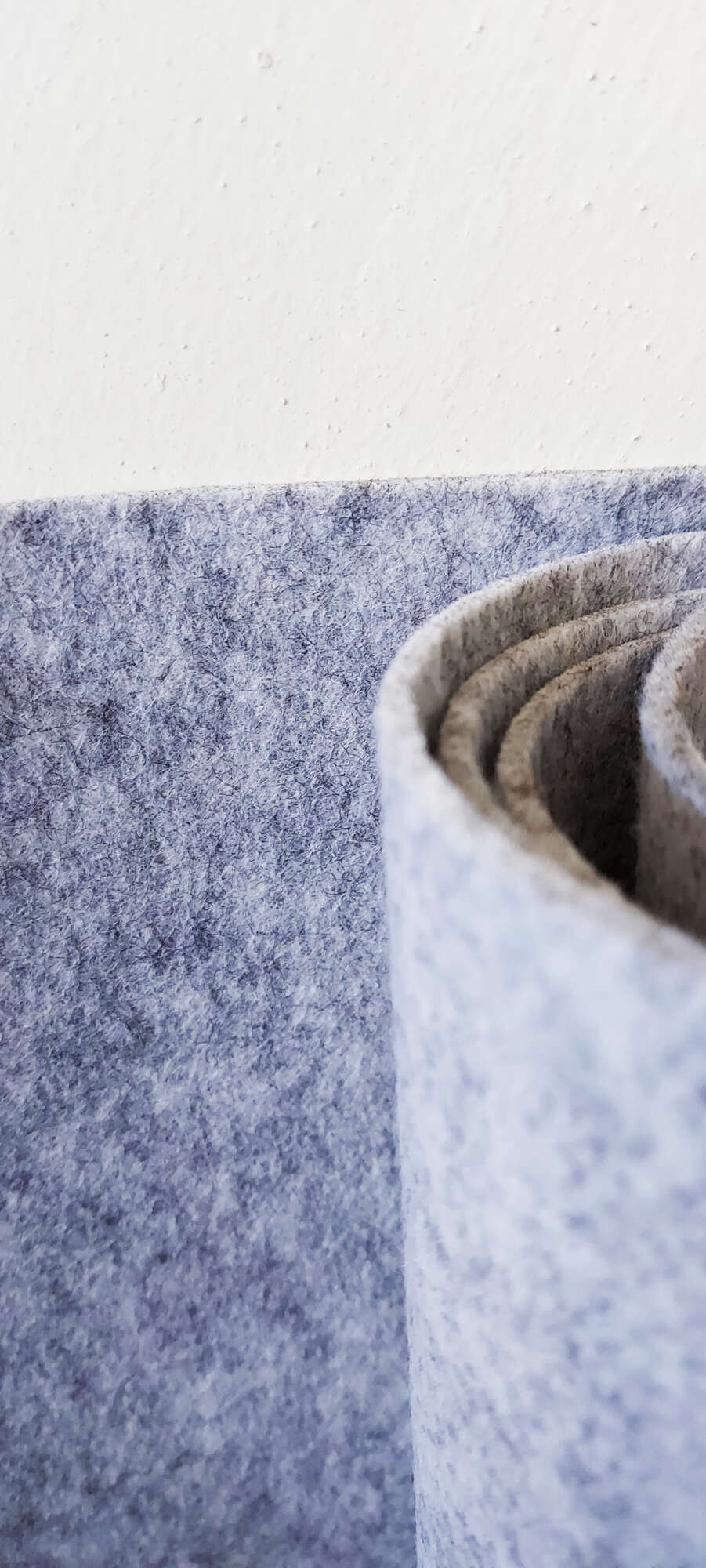

Acoustic coating for underfloor systems and/or sound-insulating dry sheets, 4 mm thick and 650 gr/m2 weight obtained by carding, needle-like and heat-sealing polyester fibres, 60% of which are postconsumer.
Product covered by eco-toxicological certification Oeko-tex standard 100, class 1 and GRS certification.
Advantages
- Suitable for ceramic or wood floors
- Suitable for dry substrates
- Suitable for floating floors
- Suitable for stairs
|
TESTING FOR THE ISOLATION OF TREAD NOISE ACCORDING TO EN ISO 16283-2/ EN ISO 717-2 |
||
|---|---|---|
| Improvement due to the system Greenplatt + floating parquet |
(∆ Lnt,w) |
30 dB |
| Improvement due to the system Greenplatt + glued tile | (∆ Lnt,w) | 29 dB |
| Improvement due to the system Greenplatt + Tecno Core and floating parquet | (∆ Lnt,w) | 34 dB |
|
TESTS FOR THE ISOLATION OF TREADING NOISE ACCORDING TO EN ISO 10140-3/ EN ISO 717-2 |
||
|---|---|---|
| Reduction of treading noise with ceramic floor | (∆ Lw) | 18 dB |
| Reduction of treading noise with wood floor glued | (∆ Lw) | 18 dB |
|
TECHNICAL INFORMATION |
||
|---|---|---|
| Thickness |
mm |
4 mm |
| Format | Roll | 1,00 x 15 m |
| Packaging | Pallet | 120 mq |
| Thermal conductivity | λ | 0,038 W/mK |
| Specific thermal resistance [R] | RD | 0,309 m2 K/W |
| Density | ρ | 162 Kg/m3 ± 5% |
| Vapour resistance factor | μ | 34 |
| Oeko-tex Standard 100 certificate | Classe 1 |
Certifications
1. Existing floor or pre-existing flooring
2. Perimeter band ROTOCELL AD h 60 mm
3. Acoustic GREENPLATT bonded with joints
Sealed with ACOUSTAPE band
4. Ceramic/parquet flooring + adhesive
-
- Greenplatt
-
- Greenplatt con pavimento in legno
-
- Greenplatt con pavimento in legno
-
- Greenplatt con pavimento in ceramica
